Quick Overview

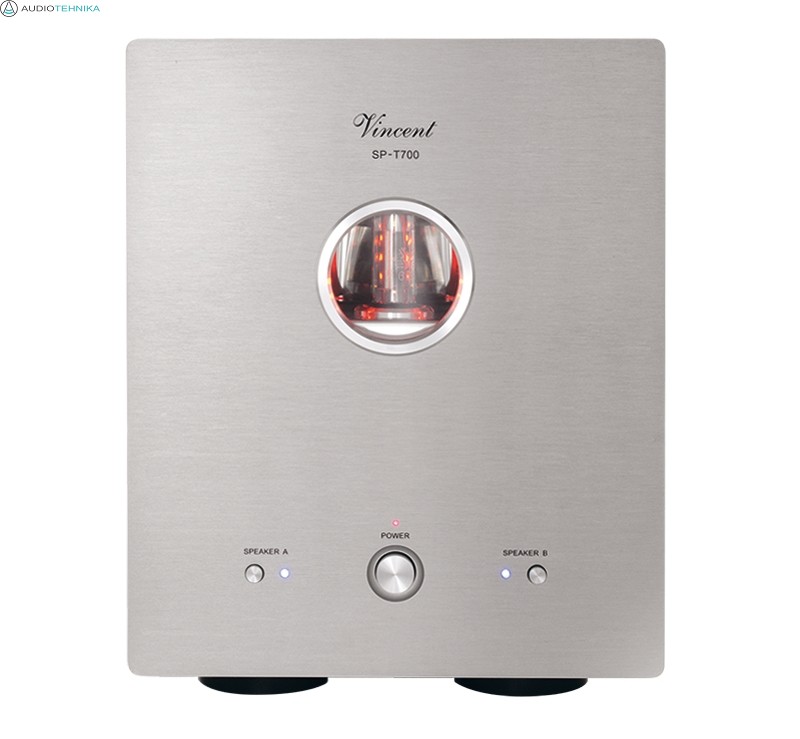

VINCENT SP-T700 Class-A Hybrid Mono Poweramplifier
• Frequency Response: 20 Hz – 20 kHz +/- 0.5 dB
• Nominal Output Power RMS / 8 Ohm: 150 Watt
• Nominal Output Power RMS / 4 Ohm: 300 Watt
• Nominal Output Power Class A / 8 Ohm: 10 Watt
• Harmonic Distortion: < 0.01 % (1 kHz, 1 Watt); < 0.1 % (1 kHz, 25 Watt)
• Input Sensitivity: 1 V (for 25 Watt RMS at 4 Ohm)
• Signal-Noise Ratio: > 90 dB
• Input Impedance: > 22 kOhm
• Max. Power Consumption: 306 Watt
• Inputs: 1 x Mono RCA, 1 x 3.5 mm Jack (Power Control)
• Outputs: 2 x 2 Speaker Terminal, 1 x 3.5 mm Jack (Power Control)
• Tubes: 1 x 6S3P-EV; 1 x 6SCH9P, 1 x 6Z4
• Viimistlus: Must, Hõbedane
• Kaal: 16 kg
• Mõõdud: (WxHxD): 210 x 263 x 400 mm
